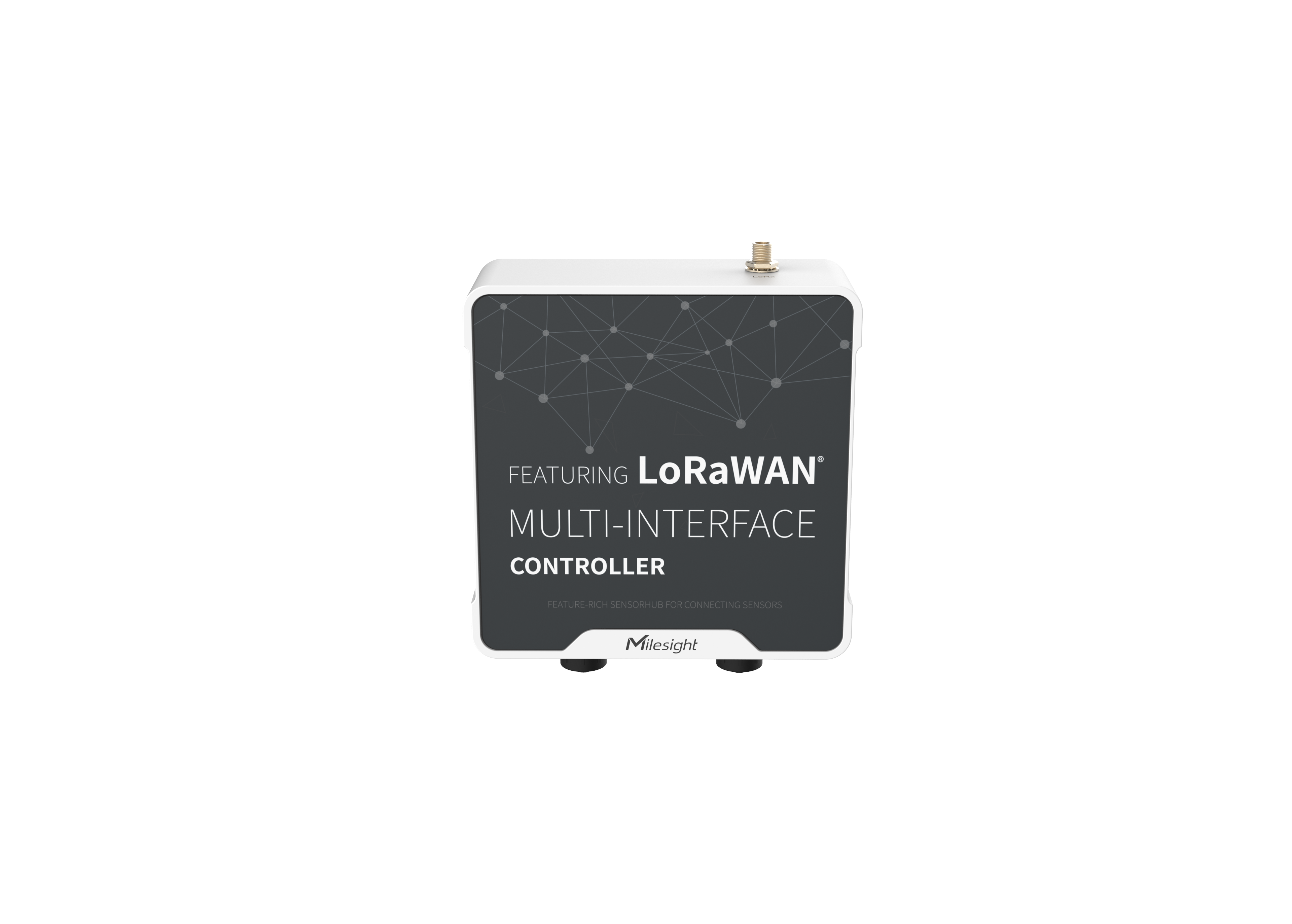

Multi Interface LORAWAN Controller

UC50x

₹34200.00₹25993.00

Wireless Transmission

LoRaWAN® Version

Antenna

Internal Antenna or External Antenna (Hardware Optional)
External Antenna (EA) Version: 1 × 50 Ω SMA Female Connector

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz)

Sensitivity

-137dBm @300bps

Work Mode

OTAA/ABP Class A, Class C

Cellular Version

Antenna

Internal Antenna

Cellular Band

NB-IoT/Cat.M Version:
Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/
B66/B71/B85

SIM Slot

1 (Nano SIM-4FF)

Application Mode

TCP/UDP/MQTT/AWS

Data Interfaces

Interface Type

M12 A-Coded Male

IO

Ports

2 × GPIO

Logical Level

Low: 0~0.8 V, High: 2.5~3.3 V

Maximum Current

20 mA

Work Mode

Digital Input, Digital Output, Pulse Counter (Software Switchable)

Serial Port

Ports

1 × RS232 or RS485 (Software Switchable)

Baud Rate

1200~115200 bps

Protocol

Transparent (RS232/RS485), Modbus RTU (RS485)

Analog Input

Ports

2 × Analog Input

Resolution

12 bit

Input Range

4~20 mA or 0~10 V (Switchable)

SDI-12

Ports

1 × SDI-12

Protocol

SDI-12 V1.4, Transparent

Power Output

Ports

2 × 3.3 V, 2 × 5/9/12 V(Switchable)

Power Time Before Data Collection

Continuous (3.3V), 0~10 minutes (5/9/12V)

Operation

Power On & Off

LoRaWAN® Version: Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal)
Cellular Version: Mobile App (via NFC), Power Button (Internal)

Configuration

LoRaWAN® Version: Mobile App (via NFC) or PC software (via USB Type-C)
Cellular Version: Mobile App (via NFC)

Physical Characteristics

Power Connector

1 × M12 A-Coded Male Interface

Power Supply

1. 2 × 2550 mAh Chargeable Batteries
2. Solar powered (6V, 1.7W)
3. 5-24 VDC

Operating Temperature

-20°C~60°C

Ingress Protection

IP68 (1m underwater, 7 days)

Dimension

116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) (Connectors Excluded)

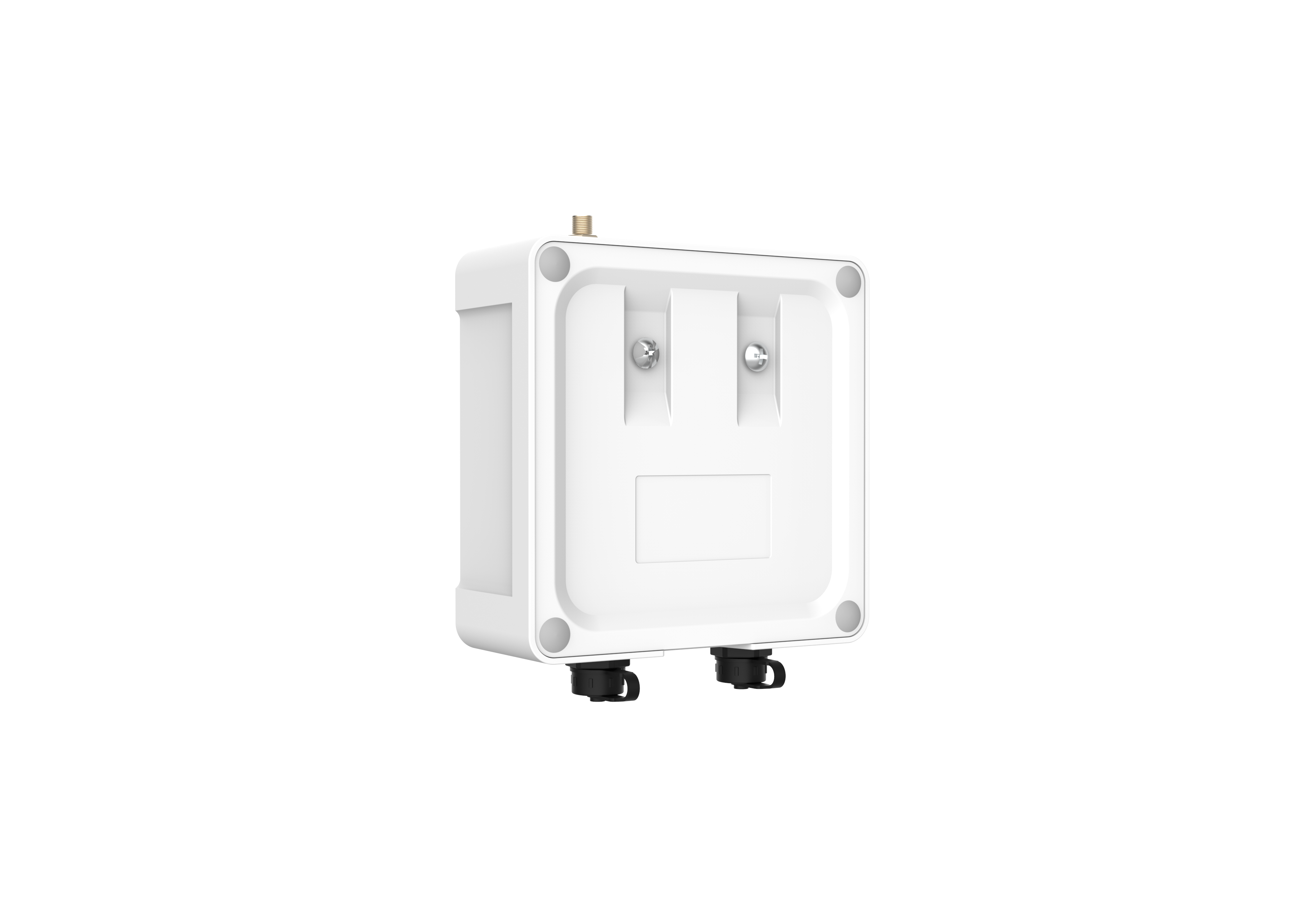

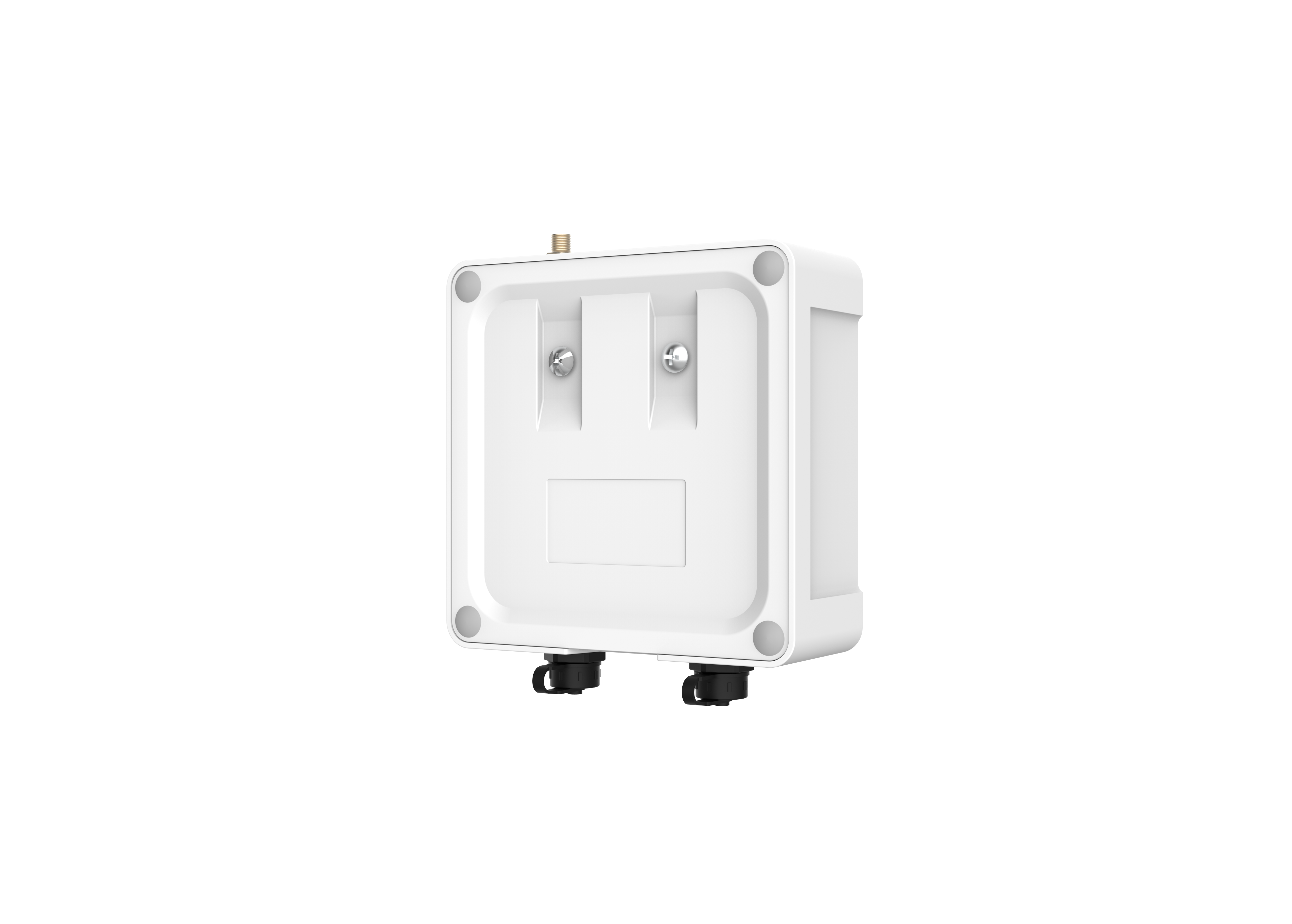

Installation

Wall or Pole Mounting
