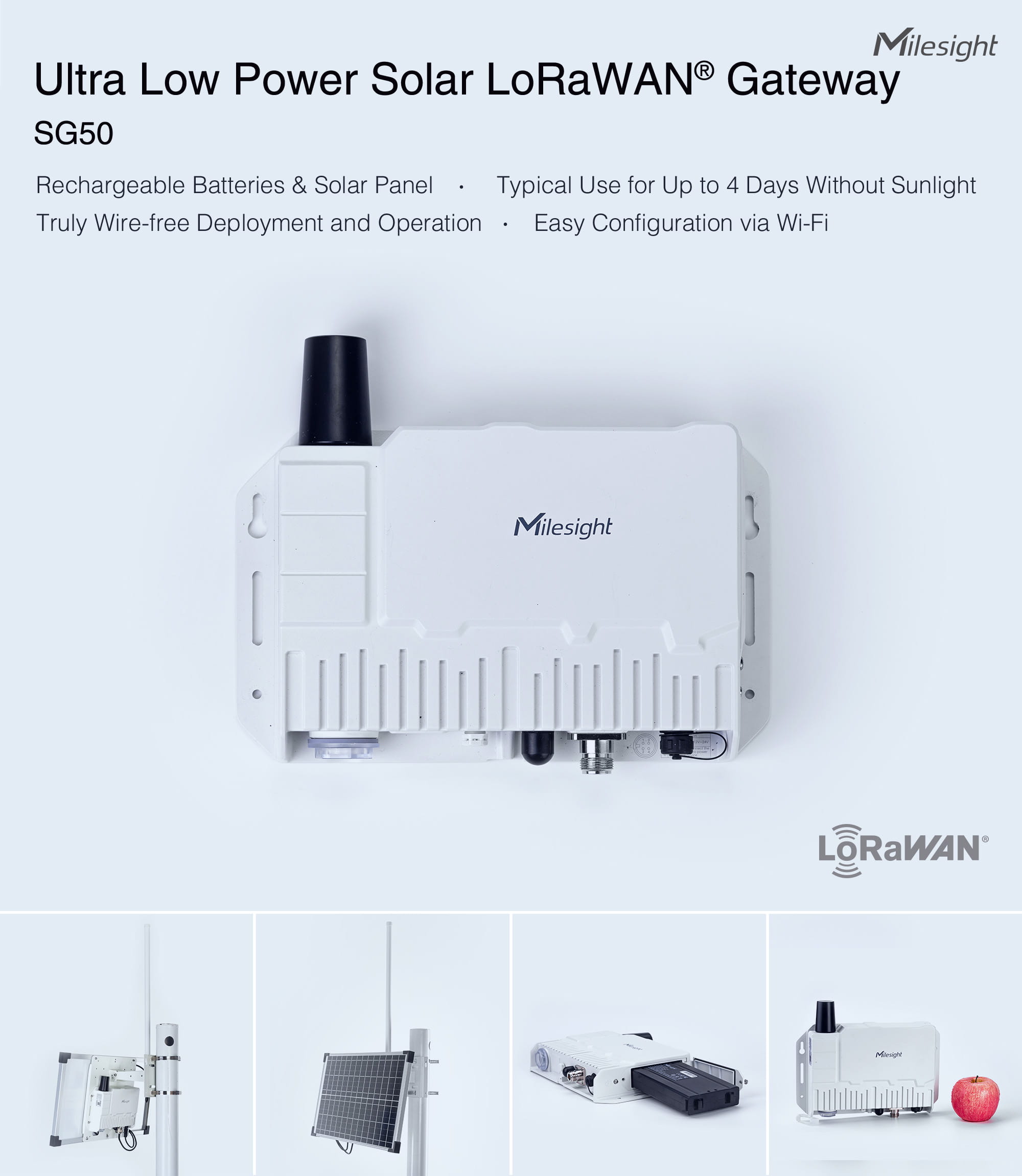

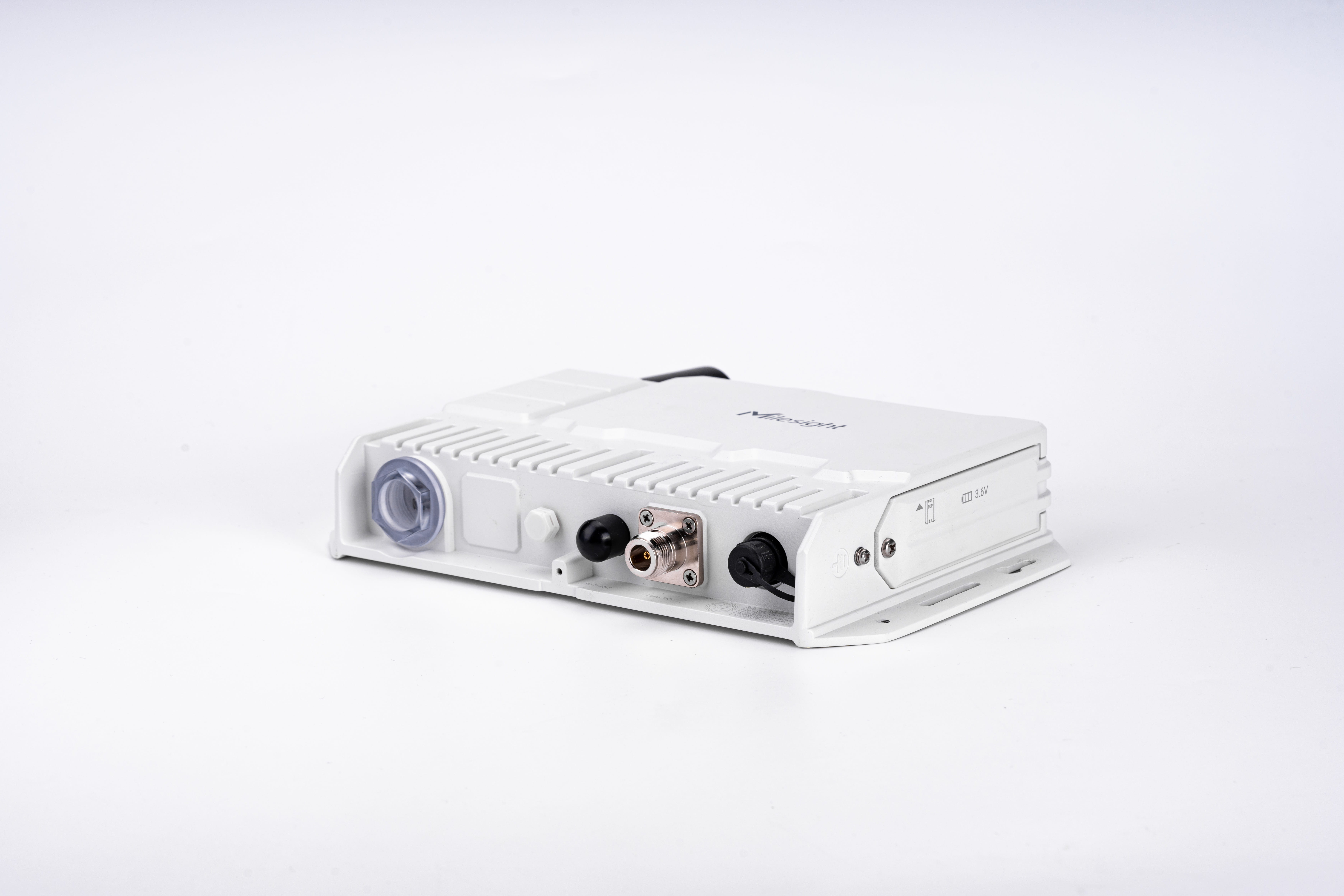

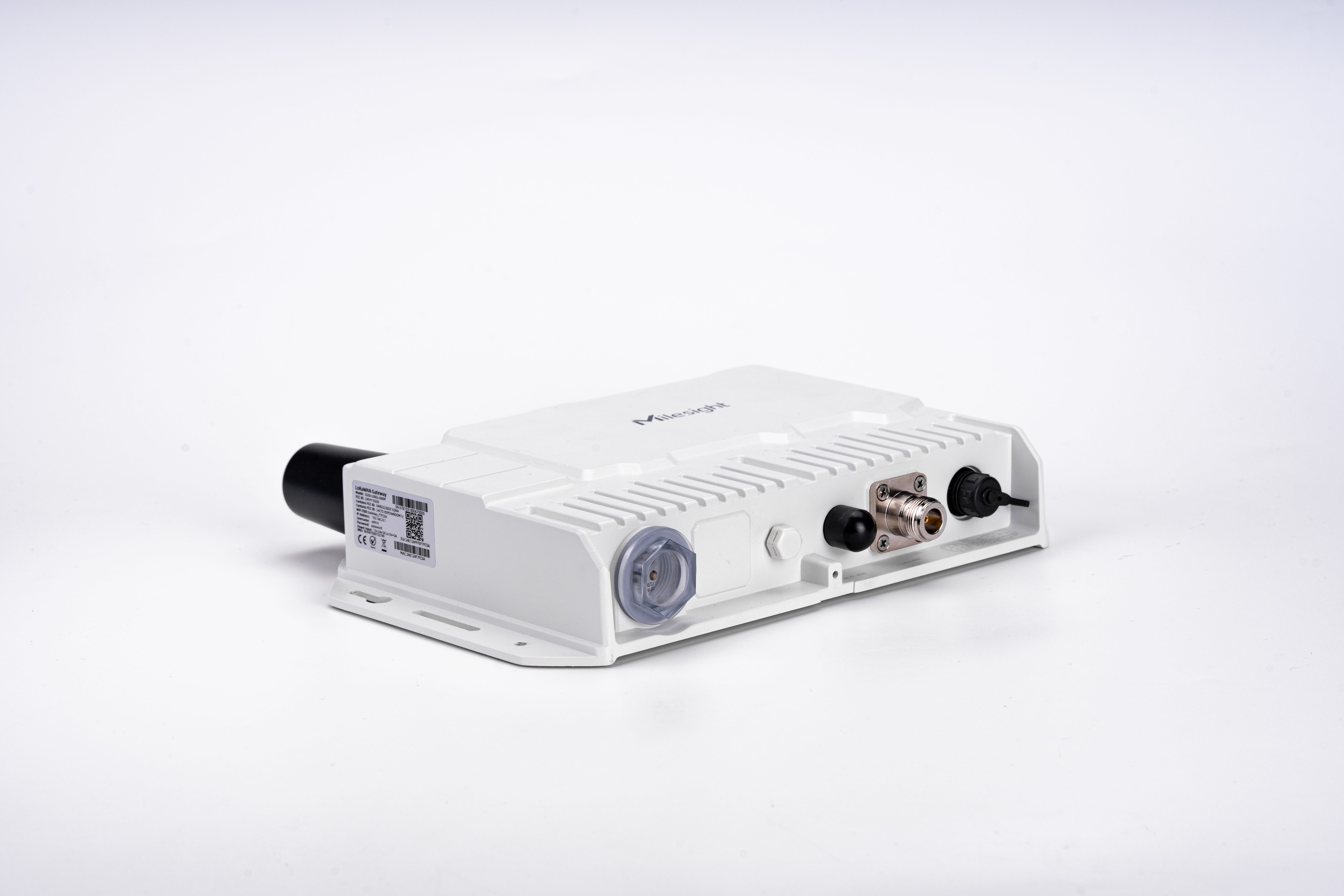

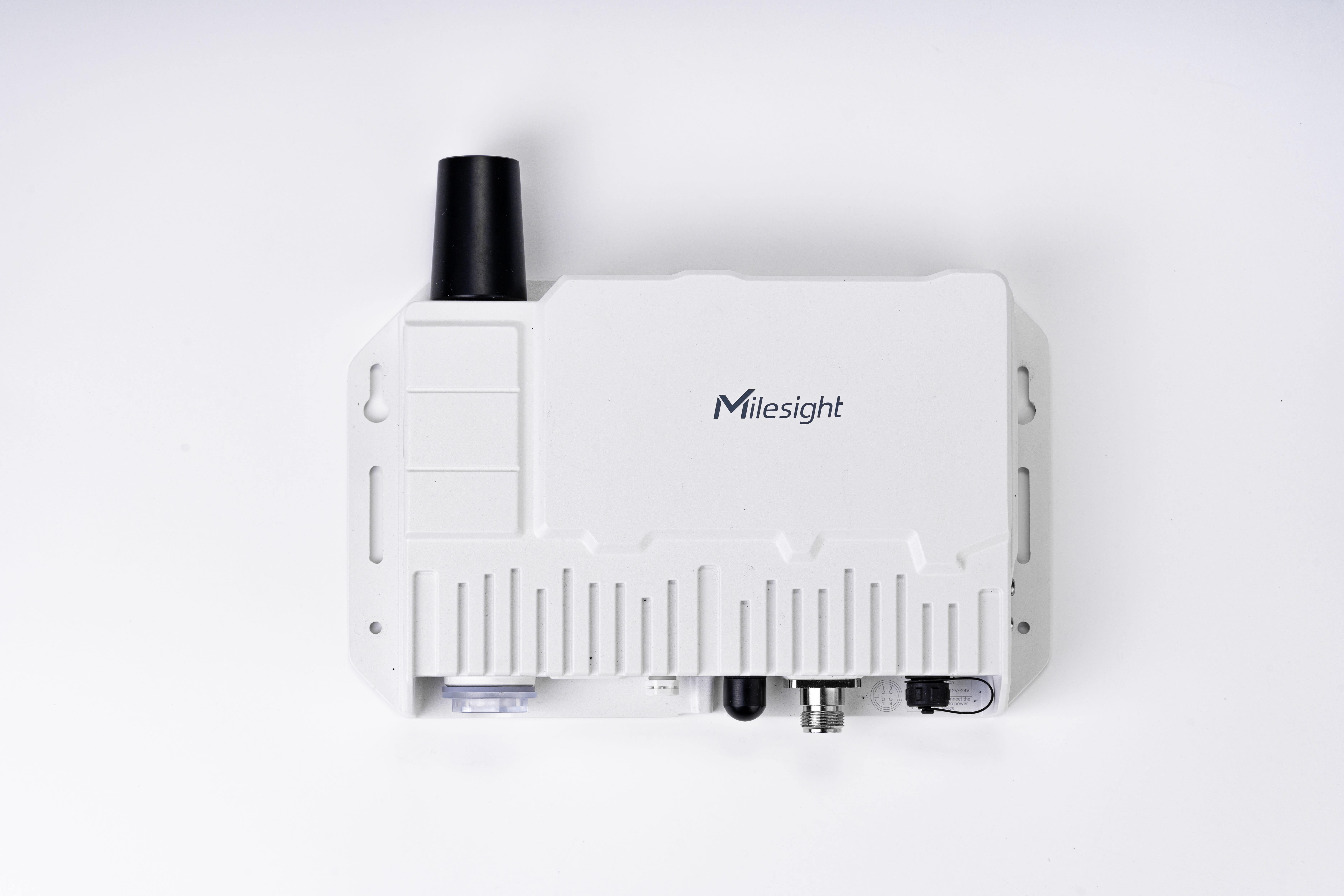

LORAWAN Solar Outdoor Gateway

SG50

₹101200.00

Hardware System

CPU

Dual-core 240MHz, 32-bit Xtensa® LX7

Memory

8 MB PSRAM

Flash

16 MB

LoRaWAN®

Antenna Connector

1 × 50 Ω N-Female External Connector

Channel

8 (Half-duplex)

Frequency Band

IN865

Sensitivity

-140 dBm Sensitivity @292bps

Output Power

27 dBm Max

Protocol

V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

LBT1

Support

Cellular Interface

Network

4G LTE (CAT 1)/GSM

Antenna

1 × External Antenna (Share with GPS)

Cellular Band

L08GL (Global except North America):
LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66
LTE-TDD: B34/38/39/40/41;
GSM: B2/3/5/8
L09NA (North America):
LTE-FDD: B2/4/5/12/13/66

SIM Slot

1 (Nano SIM-4FF)

Wi-Fi Interface

Antenna

1 × External Antenna

Standards

IEEE 802.11b/g/n, 2.4 GHz

Mode

AP Mode (Device Configuration Only)

GNSS

Technology

GPS

Antenna

1 × External Antenna (Share with Cellular)

Others

Button

1 × Reset/Wi-Fi Button

Console Port

1 × USB 2.0 (Type-C) for Power Supply and Console

LED Indicators

1 × SYSTEM, 1 × LTE, 1 × Wi-Fi

Built-in

Watchdog, Timer

Power Supply and Consumption

Power Supply

1. Solar Power or DC Power (12~24VDC) via M12 Connector
2. 3.6V, 25000mAh Backup Batteries
3. 5V, 2A by Type-C Port

Battery Life2

Up to 4 Days Without Sunlight

Power Consumption

Typical 0.8W

Physical Characteristics

Ingress Protection

IP67

Housing & Color

Metal Cast Aluminum, White

Weight

1.275 kg (Without Batteries), 1.755 kg (With Batteries)

Dimensions

250 × 157.5 × 46mm (9.84 x 6.20 x 1.81 in)

Installation

Wall or Pole Mounting

Environmental

Operating Temperature

-30°C to +70°C (-22℉ to +158℉)

Charging Temperature

-20°C to +50°C (-4℉ to +122℉)

Storage Temperature

-40°C to +85°C (-40℉ to +185℉)

Relative Humidity

0% to 95% (Non-condensing) at 25°C/77℉
