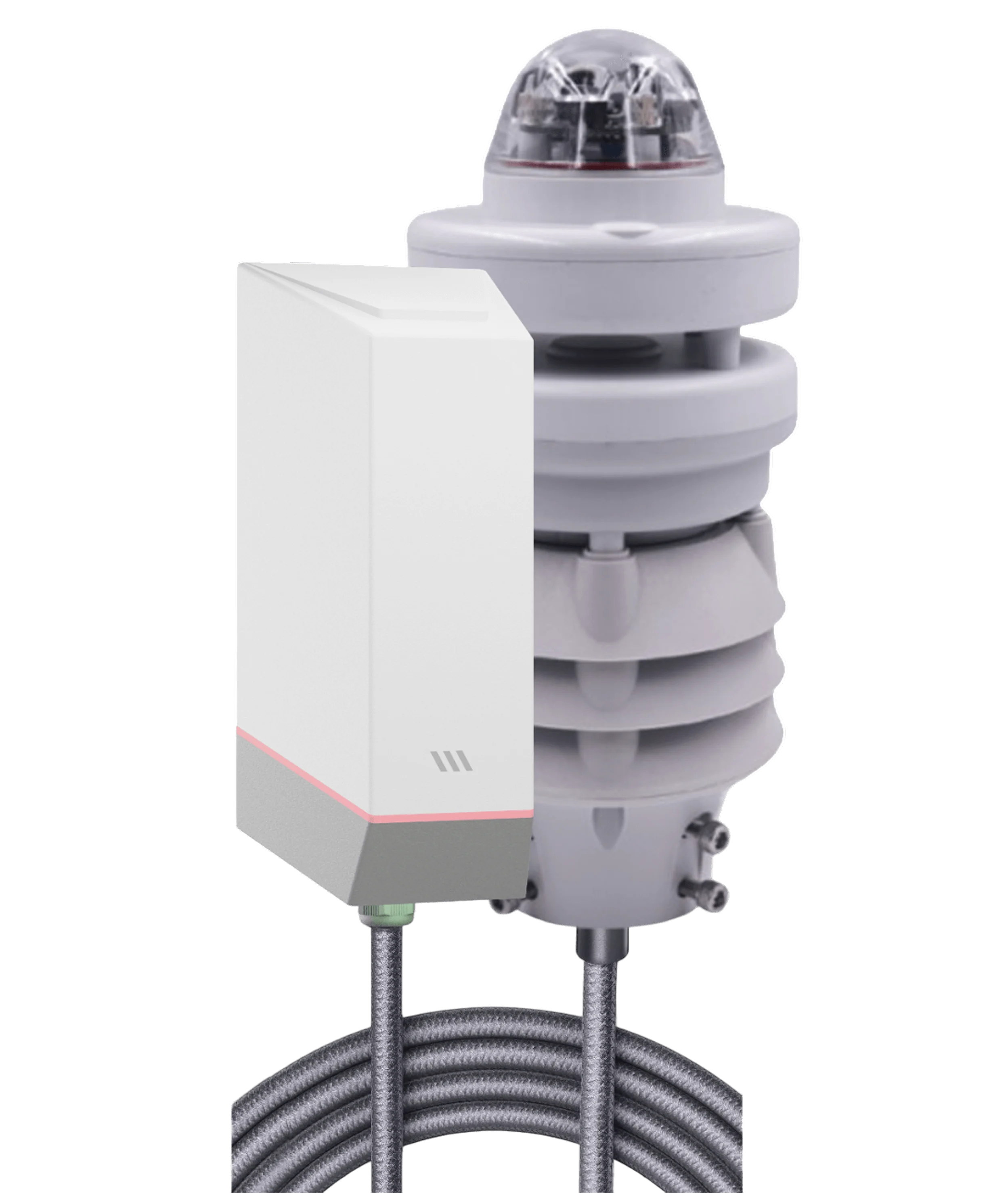

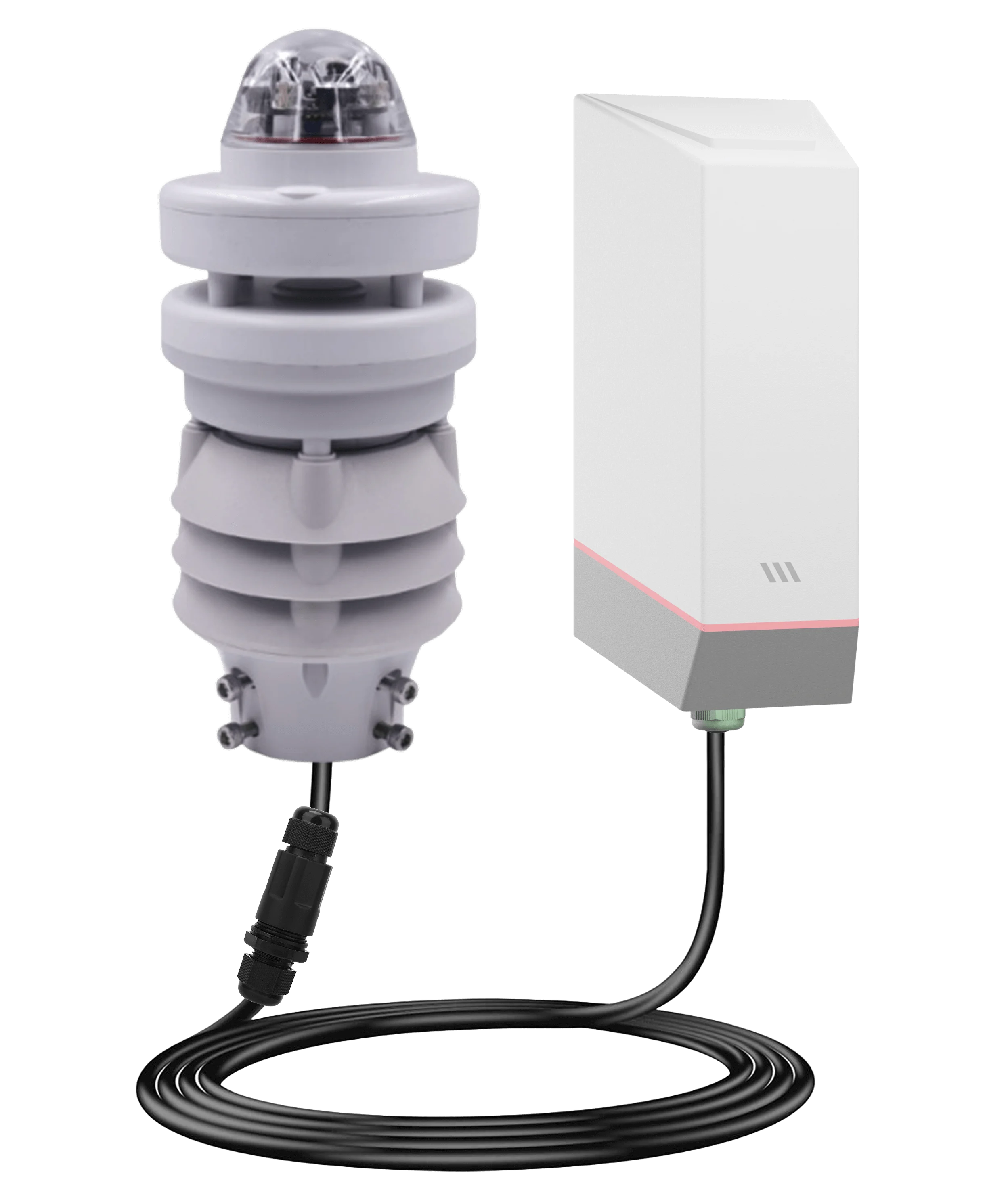

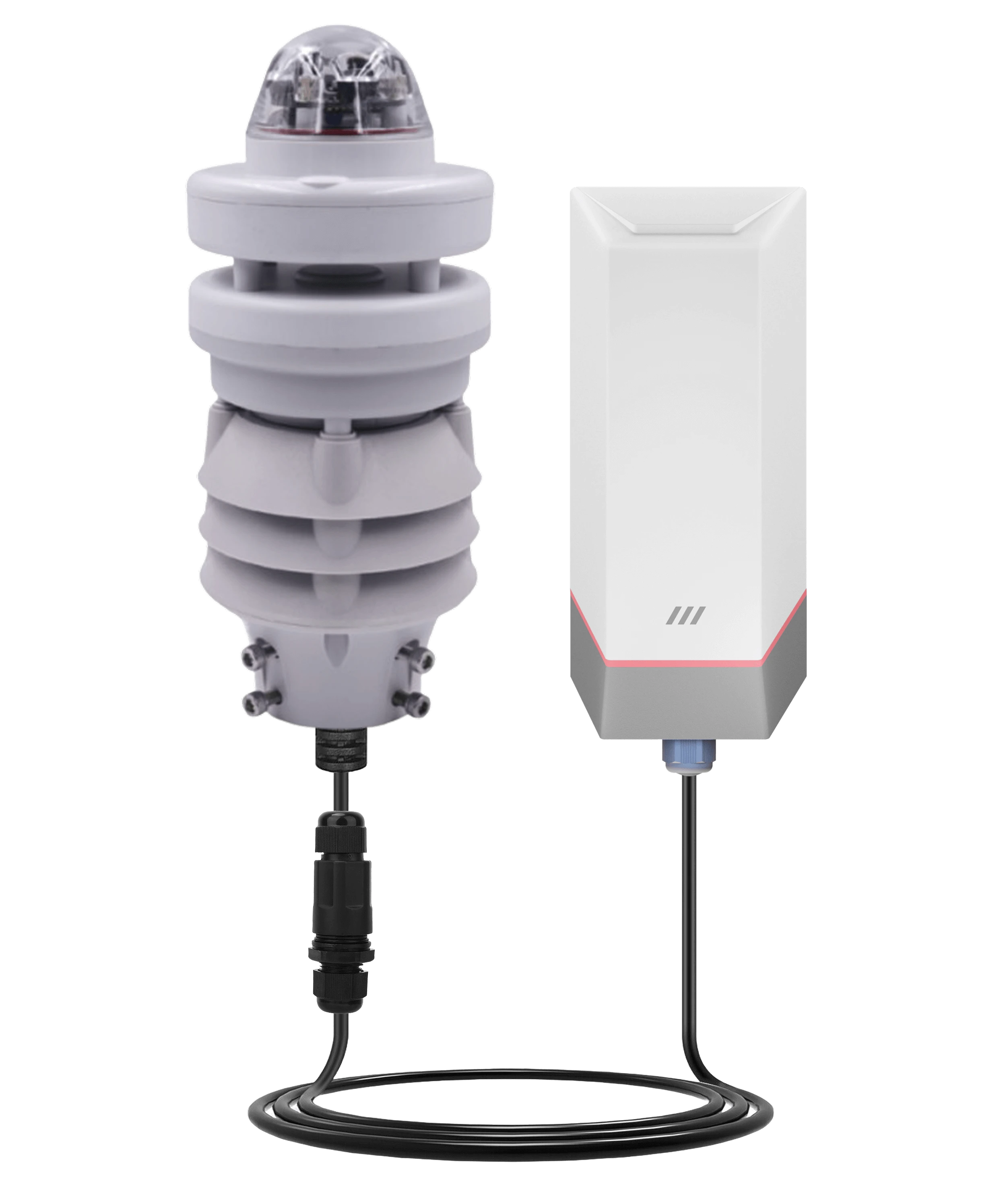

LORAWAN (7 in 1) Weather Station

Macmann

₹98300.00₹84509.00

MacSync-LW6 is a rugged and intelligent LoRaWAN® weather station designed for reliable, real-time environmental monitoring. Built for harsh environments, it features a robust, UV-resistant housing and IP66-rated protection, ensuring long-term durability even in extreme weather conditions.

Whether deployed in vineyards, solar farms, research facilities, or smart infrastructure projects, MacSync-LW6 provides the environmental intelligence you need to make data-driven decisions with plug-&-play compatibility across the MacSync ecosystem.

Features

  • High-Precision Multi-Parameter Sensors – Ambient Temperature, Humidity, Wind Speed, Wind Direction, Atmospheric Pressure, Rainfall

  • LoRaWAN® Class A & C communication

  • IP66-rated enclosure – Designed for outdoor & industrial environments

  • Supports periodic, threshold-based, & event-driven uplinks

  • BLE Support – Easy local configuration and diagnostics with Maya

  • Supports Macnman Beam Protocol – Direct control & local device-to-device actions

  • Optional Onboard Data Buffering – To prevent data loss during downtime

  • Ultra-long-range transmission – Up to 8 km line of sight

  • Secure onboarding with pre-flashed DevEUI / AppEUI / AppKey

  • Compatible with all LoRaWAN® network servers & gateways

Specifications

Wireless Transmission

  • Antenna: Internal high-efficiency antenna

  • Technology: LoRaWAN® (v1.0.4), Macnman Beam Protocol

  • Supported Bands: IN865 / RU864 / EU868 / US915 / AU915 / KR920 / AS923-1/2/3/4

  • Tx Power: 16 dBm @ 868 MHz, 20 dBm @ 915 MHz, 19 dBm @ 470 MHz

  • Sensitivity: -137 dBm @ 300 bps

  • Activation: OTAA / ABP

  • LoRaWAN® Class: A (default), configurable to Class C via Maya

Measurement Parameters

  • Ambient Temperature: -40°C to +85°C | Accuracy: ±0.3°C @ 25°C | Resolution: 0.01°C

  • Rainfall: 0–200 mm/h | Resolution: 0.2 mm

  • Relative Humidity: 0–100% RH | Accuracy: ±3% RH (@90% RH) | Resolution: 0.01% RH

  • Wind Speed: 0–60 m/s | Accuracy: ±(0.3 + 0.03V) m/s | Resolution: 0.01 m/s

  • Wind Direction: 0°–359.9° | Accuracy: ±3° (Speed < 10 m/s) | Resolution: 0.1°

  • Atmospheric Pressure: 500–1100 hPa | Accuracy: ±0.5 hPa (25°C) | Resolution: 0.1 hPa

Maya Features

  • LED Indicators (multi-color) for status & configuration

  • OTA (Over-the-Air) updates

  • Remote configuration via Macnman Maya Android App

  • Storage: Up to 30,000 records accessible via Maya

  • Alarm triggers: Threshold / Trigger / Sample-based

Physical Characteristics

  • Power Supply: Solar Panel (Monocrystalline) & Inbuilt Battery (0.5W–1W, 12V)

  • Operating Temp: -40°C to +80°C

  • Humidity: 0% to 100% RH (non-condensing)

  • Housing Material: Glass-filled Nylon

  • Color: Matte White

  • Weight: ~440 g (with 12 Ah battery, without solar panel)

  • Dimensions: ~152 mm x 62 mm x 43 mm (customizable branding available)

  • IP Rating: IP65 standard (IP67 optional)

  • Mounting Options: Standard sleeve-fixed, fixed bracket (1.5m / 1.8m), 3m cable line

Certifications

  • RoHS compliant

  • WPC, CE (Sensor)
