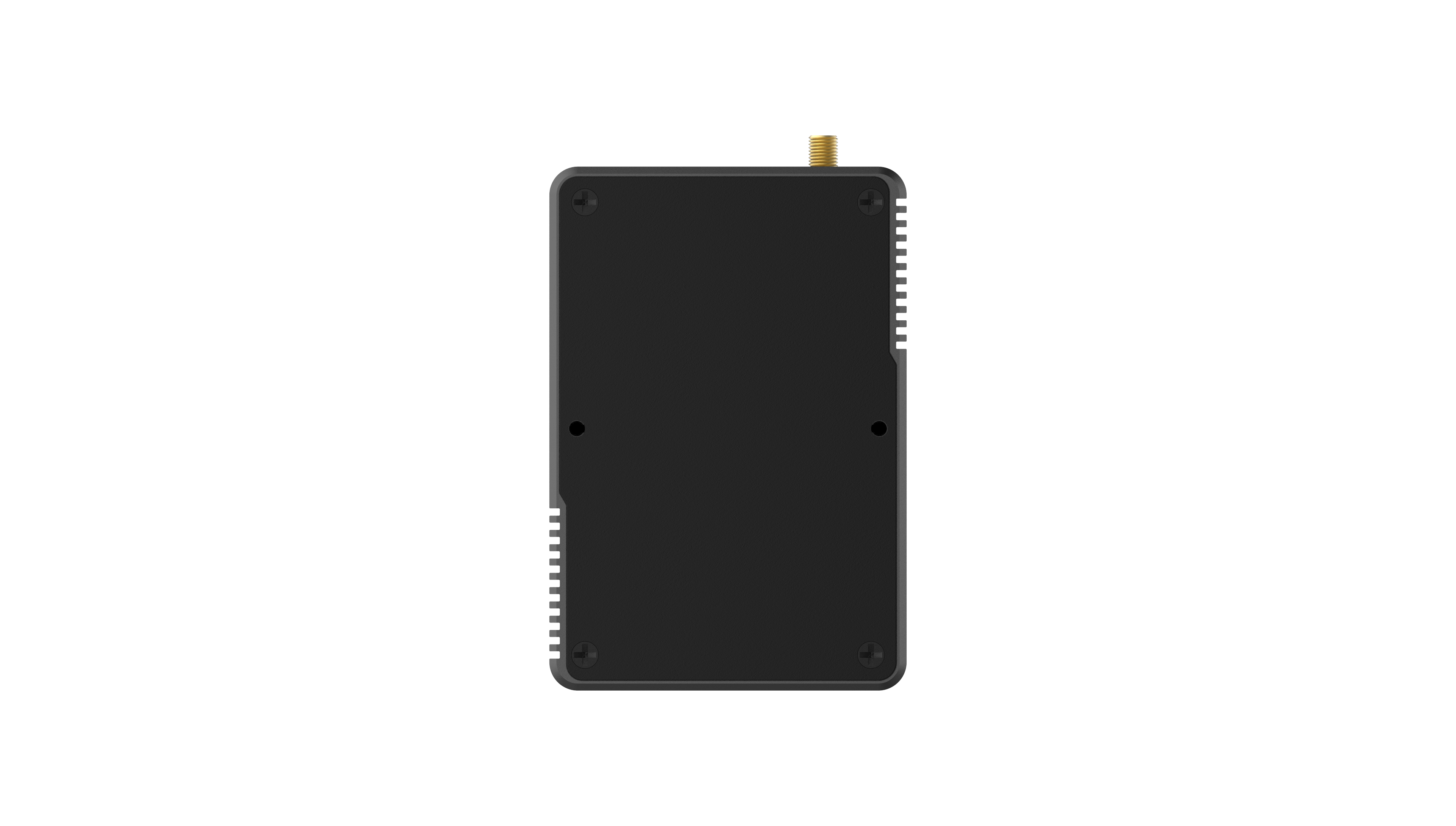

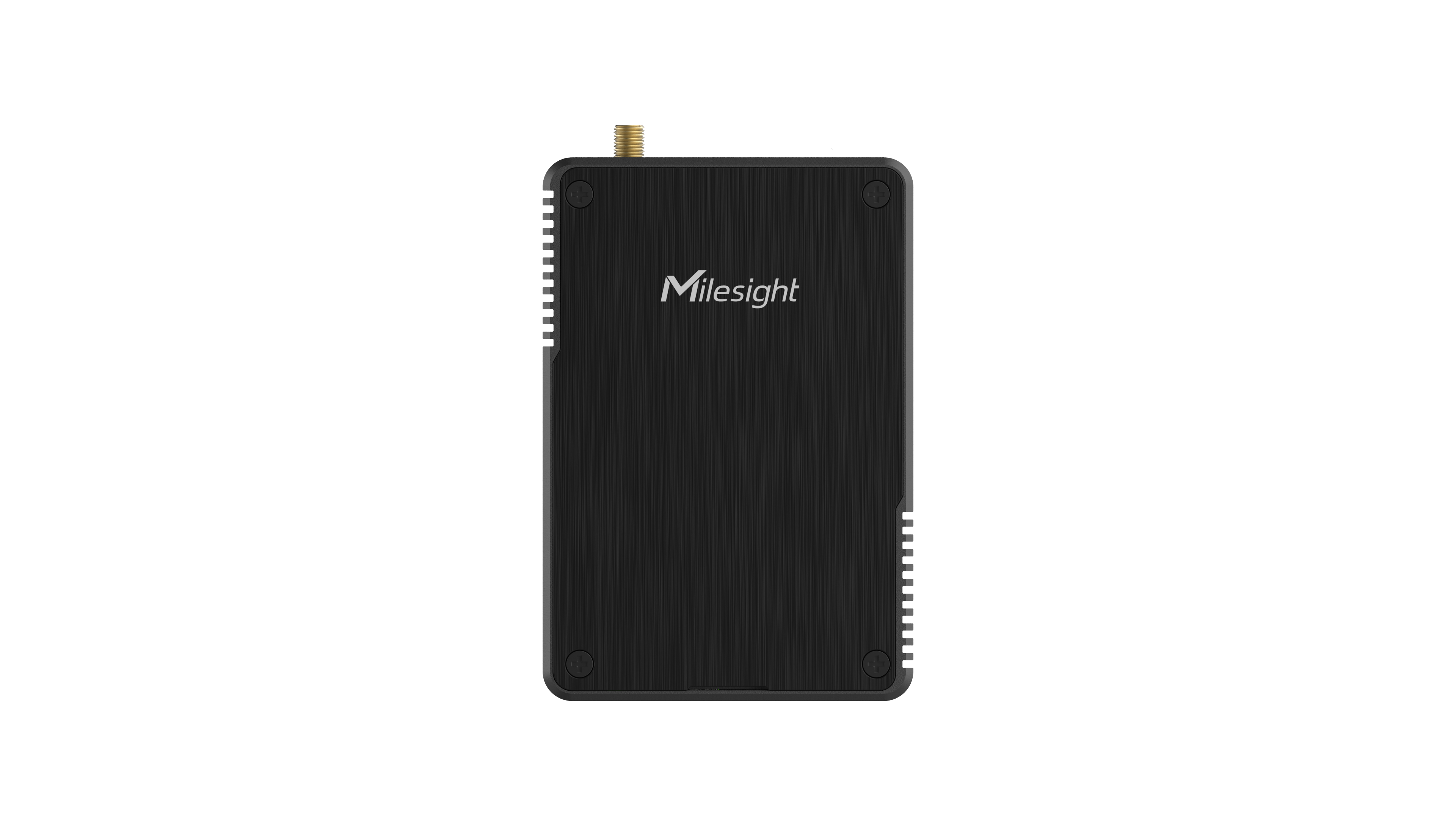

LORAWAN Industrial Gateway

UG56

₹54162.00₹49333.00

Hardware System

CPU

Quad-core 1.3 GHz, 64-bit ARM Cortex-A35

Memory

512 MB DDR3 RAM

Flash

8 GB eMMC

Extendable Storage

1 × Micro SD Slot (Internal)

LoRaWAN®

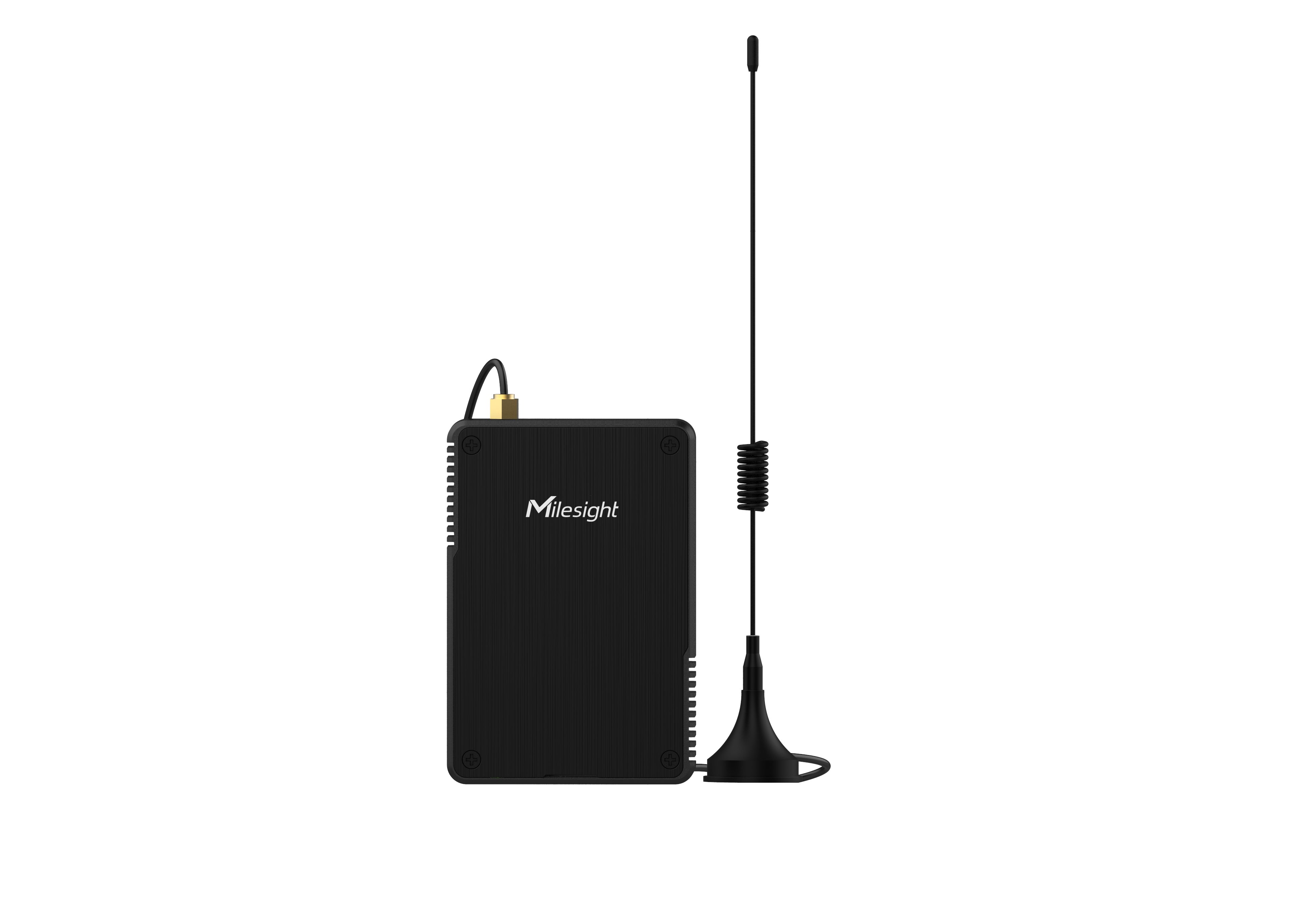

Antenna Connector

1 × 50 Ω SMA Connector (Center PIN: SMA Female)

Channel

8 (Half-duplex)

Frequency Band

IN865

Sensitivity

-140 dBm Sensitivity @292bps

Output Power

27 dBm Max

Protocol

V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

LBT1

Support

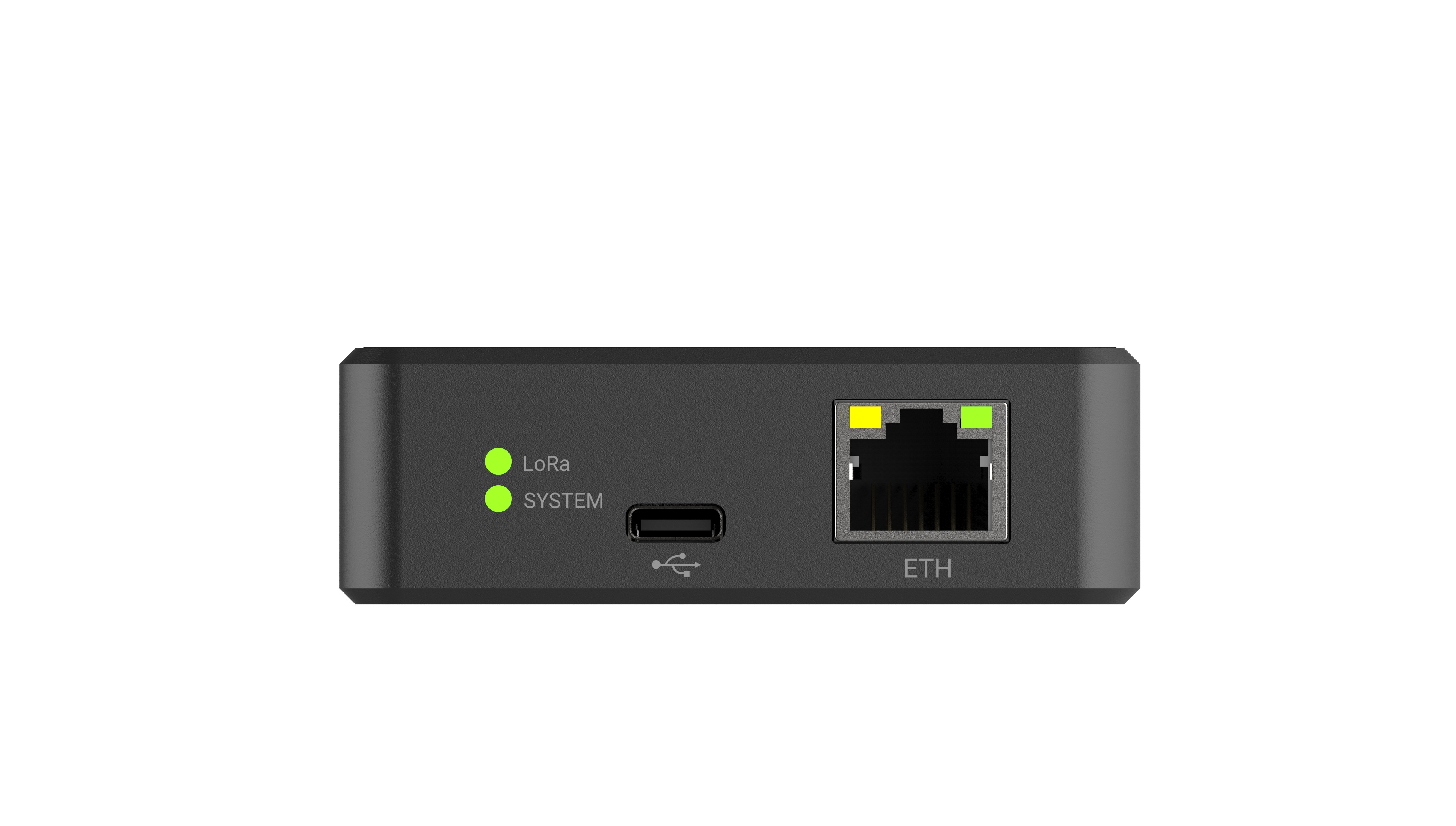

Ethernet Interface

Port

1 × RJ45 (PoE PD supported)

Physical Layer

10/100 Base-T (IEEE 802.3)

Data Rate

10/100 Mbps (Auto-Sensing)

Interface

Auto MDI/MDIX

Mode

Full or Half Duplex (Auto-Sensing)

Wi-Fi Interface

Antenna

Internal Antenna

Standards

IEEE 802.11b/g/n, 2.4 GHz

Mode

AP or Client mode

Security

WPA/WPA2 authentication, WEP/TKIP/AES encryption

Tx Power

802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)

Cellular Interface (Optional)

Antenna Connector

1 × 50 Ω SMA Connector (Center PIN: SMA Female)

SIM Slot

1 (Mini SIM-2FF)

Others

Reset Button

1 × RST (Internal)

Console Port

1 × Type-C

LED Indicators

1 × SYSTEM, 1 × LoRa

Built-in

Watchdog, Timer

Software

Network Protocols

PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus RTU over TCP, Modbus TCP, etc.

VPN Tunnel

OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard

Firewall

ACL/DMZ/Port Mapping/MAC Binding/URL Filter

Management

Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud, Milesight Development Platform

Reliability

WAN Failover

App

Python SDK, Node-RED

Power Supply and Consumption

Power Input

1. 802.3 af PoE Inputt
2. 5V, 2A by Type-C Port

Power Consumption

Typical 1.8 W, Max 6.9 W

Physical Characteristics

Ingress Protection

IP30

Housing & Color

Metal, Black

Weight

186g

Dimensions

110 x 75 x 24 mm (4.33 x 2.95 x 0.94 in)

Installation

Desktop, Wall Mounting, DIN Rail Mounting2

Environmental

Operating Temperature

-20°C to +60°C (-4℉ to +140℉)

Storage Temperature

-40°C to +85°C (-40℉ to +185℉)

Ethernet Isolation

1.5 kV RMS

Relative Humidity

0% to 95% (non-condensing) at 25°C/77℉
