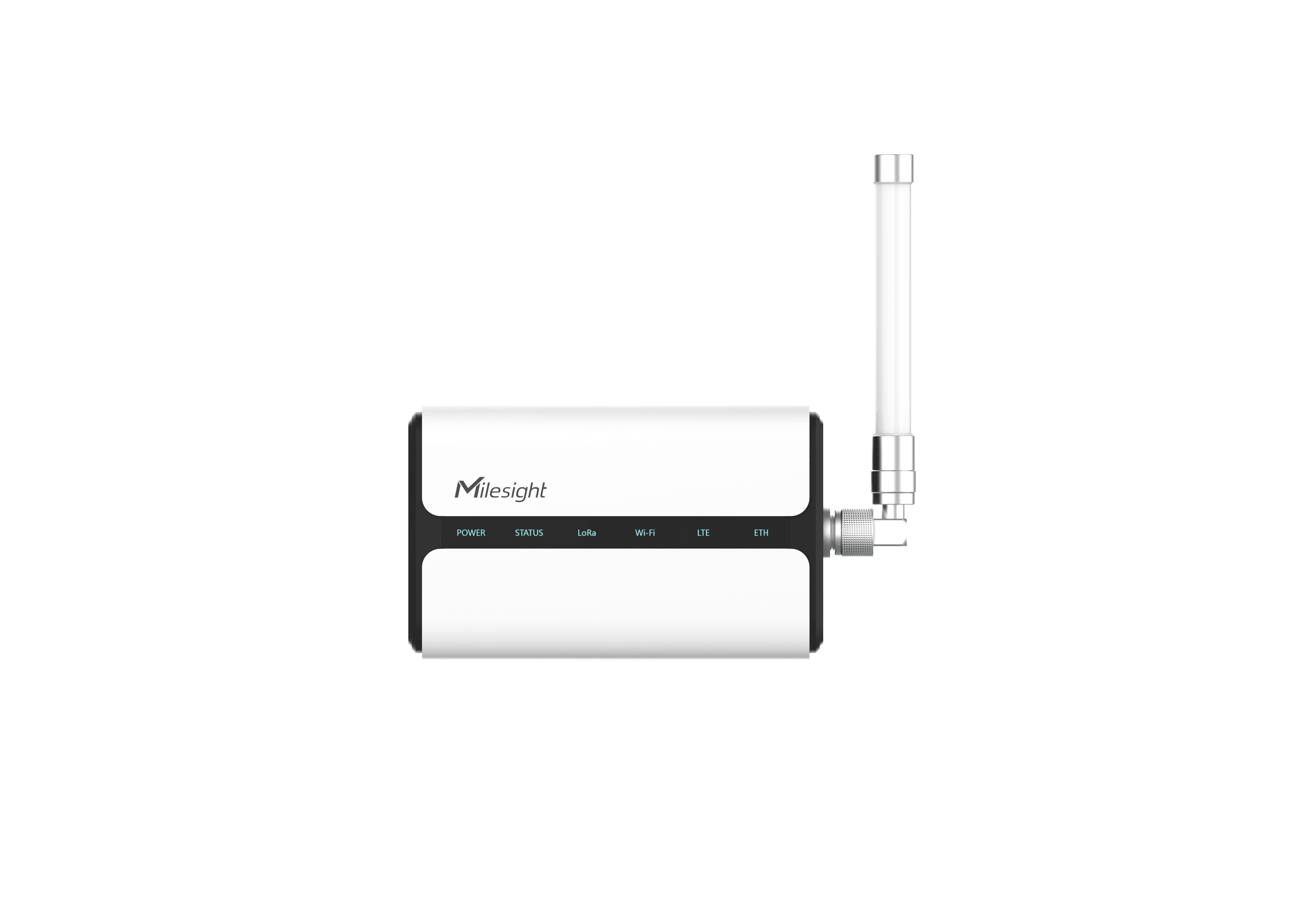

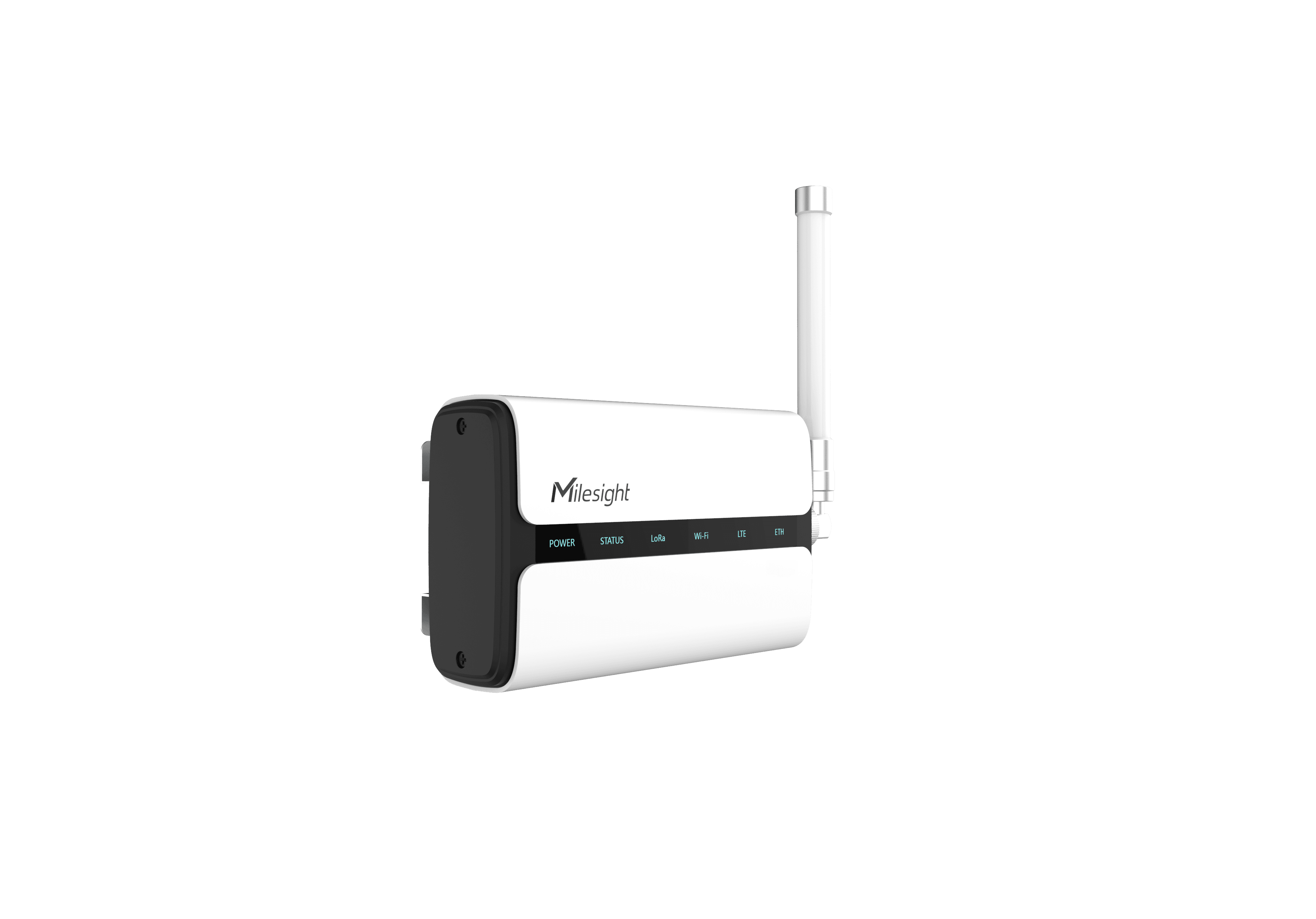

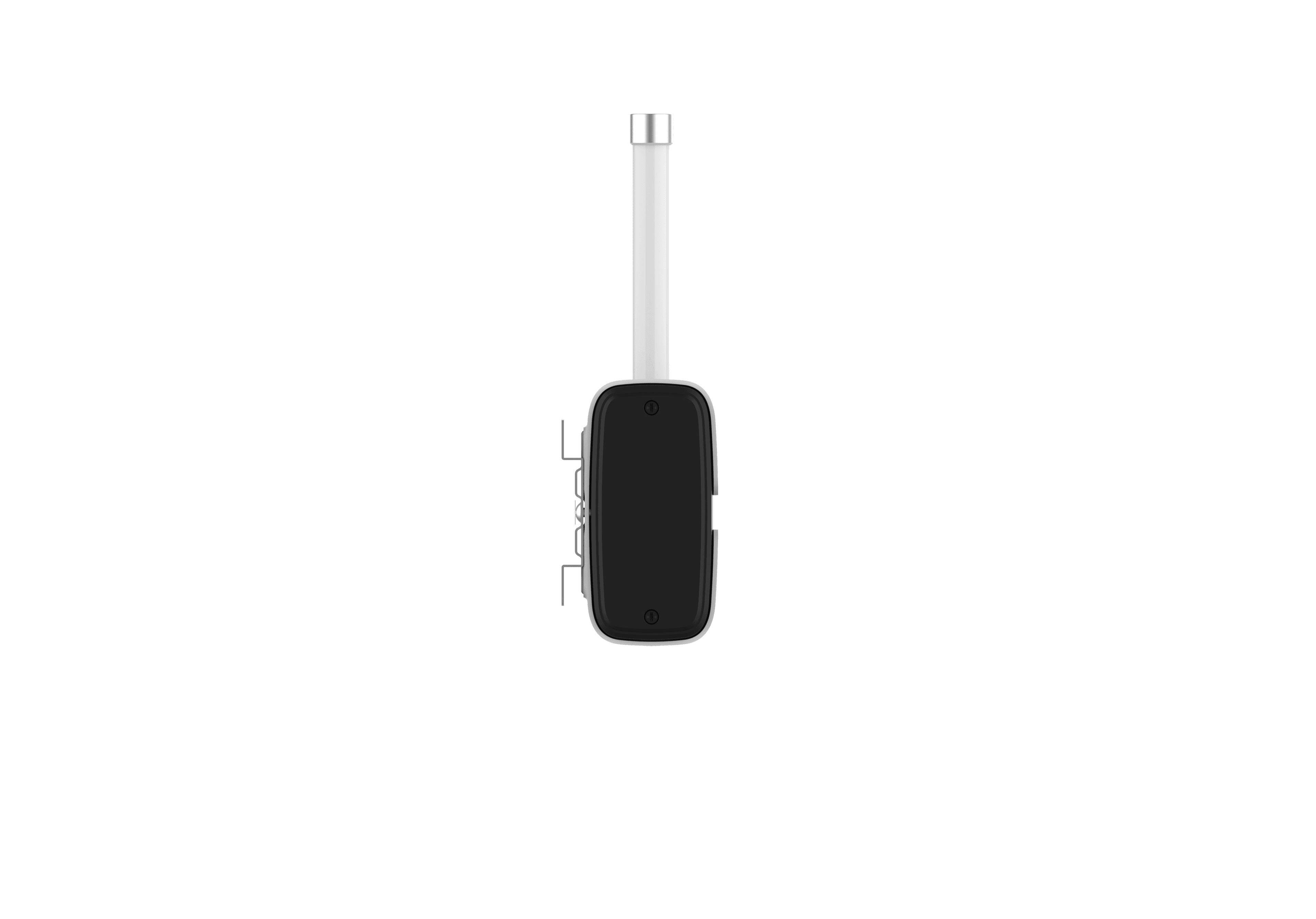

LORAWAN Indoor Gateway

UG65

₹58540.00₹57187.00

Hardware System

CPU

Quad-core 1.5 GHz, 64-bit ARM Cortex-A53

Memory

512 MB DDR4 RAM

Flash

8 GB eMMC

LoRaWAN®

Antenna

2 × Internal Antennas + 1 × 50 Ω N-Female External Connector

Channel

8 (Half/Full-duplex)

Frequency Band

IN865

Sensitivity

-140dBm Sensitivity @292bps

Output Power

27dBm Max

Protocol

V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

Ethernet Interface

Port

1 × RJ45 (PoE PD supported)

Physical Layer

10/100/1000 Base-T (IEEE 802.3)

Data Rate

10/100/1000 Mbps (Auto-Sensing)

Interface

Auto MDI/MDIX

Mode

Full or Half Duplex (Auto-Sensing)

Wi-Fi Interface

Antenna

Internal Antenna

Standards

IEEE 802.11 b/g/n, 2.4GHz

Mode

AP or Client mode

Security

WPA/WPA2 authentication, WEP/TKIP/AES encryption

Tx Power

802.11b: 18 dBm +/-2.0 dBm (11 Mbps)
802.11g: 15 dBm +/-2.0 dBm (6 Mbps)
802.11g: 15 dBm +/-2.0 dBm (54 Mbps)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)
802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)
802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)

Cellular Interface (Optional)

Antenna

Internal Antenna

SIM Slot

1 (mini SIM-2FF)

Others

Reset Button

1 × RST

Console Port

1 × Type-C

LED Indicators

1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH

Built-in

Watchdog, RTC, Timer

Software

Network Protocols

PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, MQTTS, BACnet/IP, Modbus TCP, Modbus RTU over TCP, etc.

VPN Tunnel

OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN/WireGuard

Firewall

ACL/DMZ/Port Mapping/MAC Binding/URL Filter

Management

Web, CLI, SMS, On-demand dial up, DeviceHub, Milesight IoT Cloud,
Yeastar Workplace Platform

Reliability

WAN Failover

App

Python SDK, Node-RED

Power Supply and Consumption

Power Input

1. DC Jack Connector for 9-24 VDC power supply
2. 1 × 802.3 af PoE input

Power Consumption

Typical 2.9 W, Max 4.2 W

Physical Characteristics

Ingress Protection

IP65

Dimensions

180 x 110 x 56.5 mm (7.09 x 4.33 x 2.22 in)

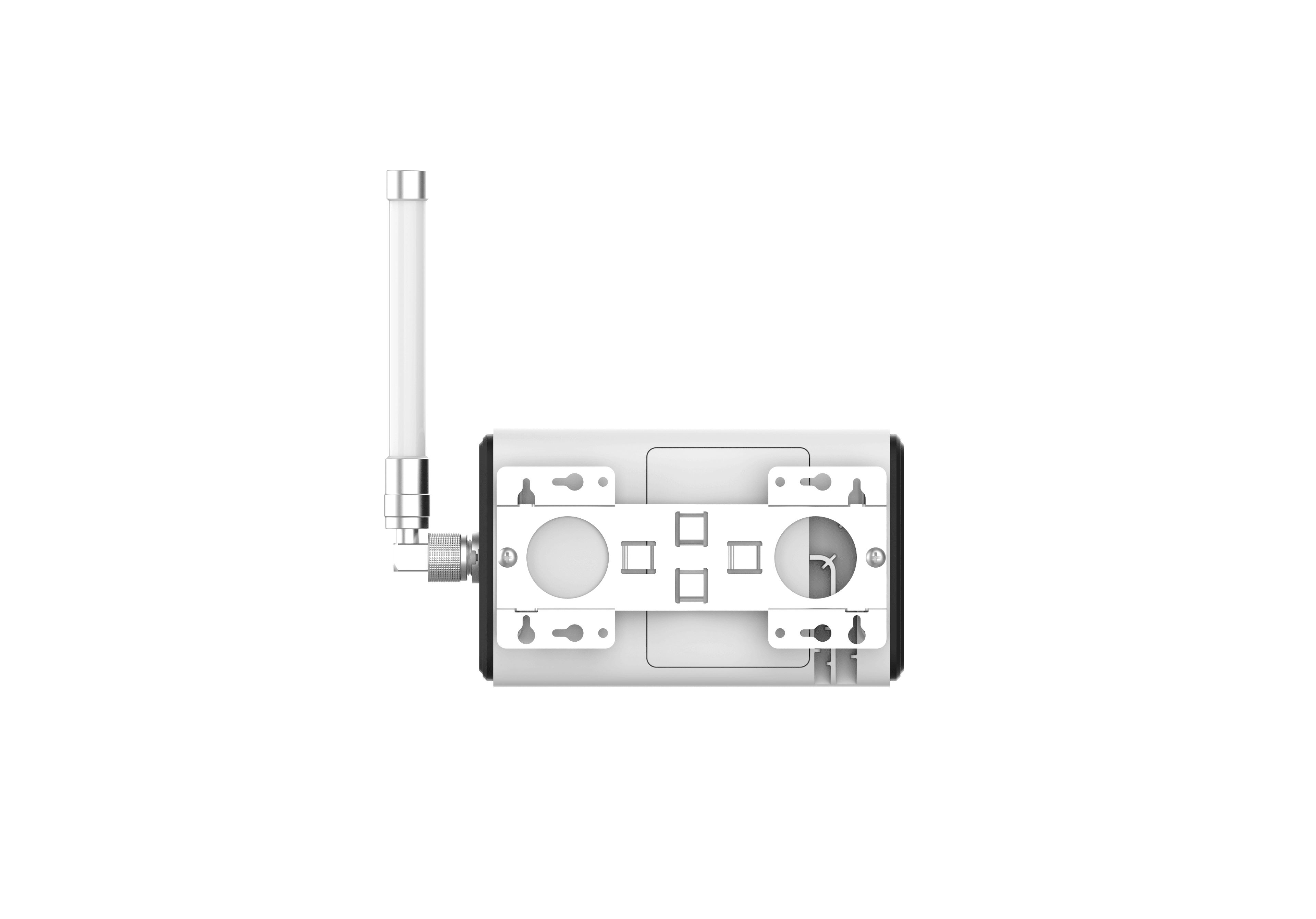

Installation

Desktop, Wall or Pole Mounting

Environmental

Operating Temperature

-40°C to +70°C (-40℉ to +158℉)
Reduced Cellular Performance Above 60°C

Storage Temperature

-40°C to +85°C (-40℉ to +185℉)

Ethernet Isolation

1.5 kV RMS

Relative Humidity

0% to 95% (non-condensing) at 25°C/77℉

Approvals

Regulatory

CE, FCC, IC

Environmental

RoHS
