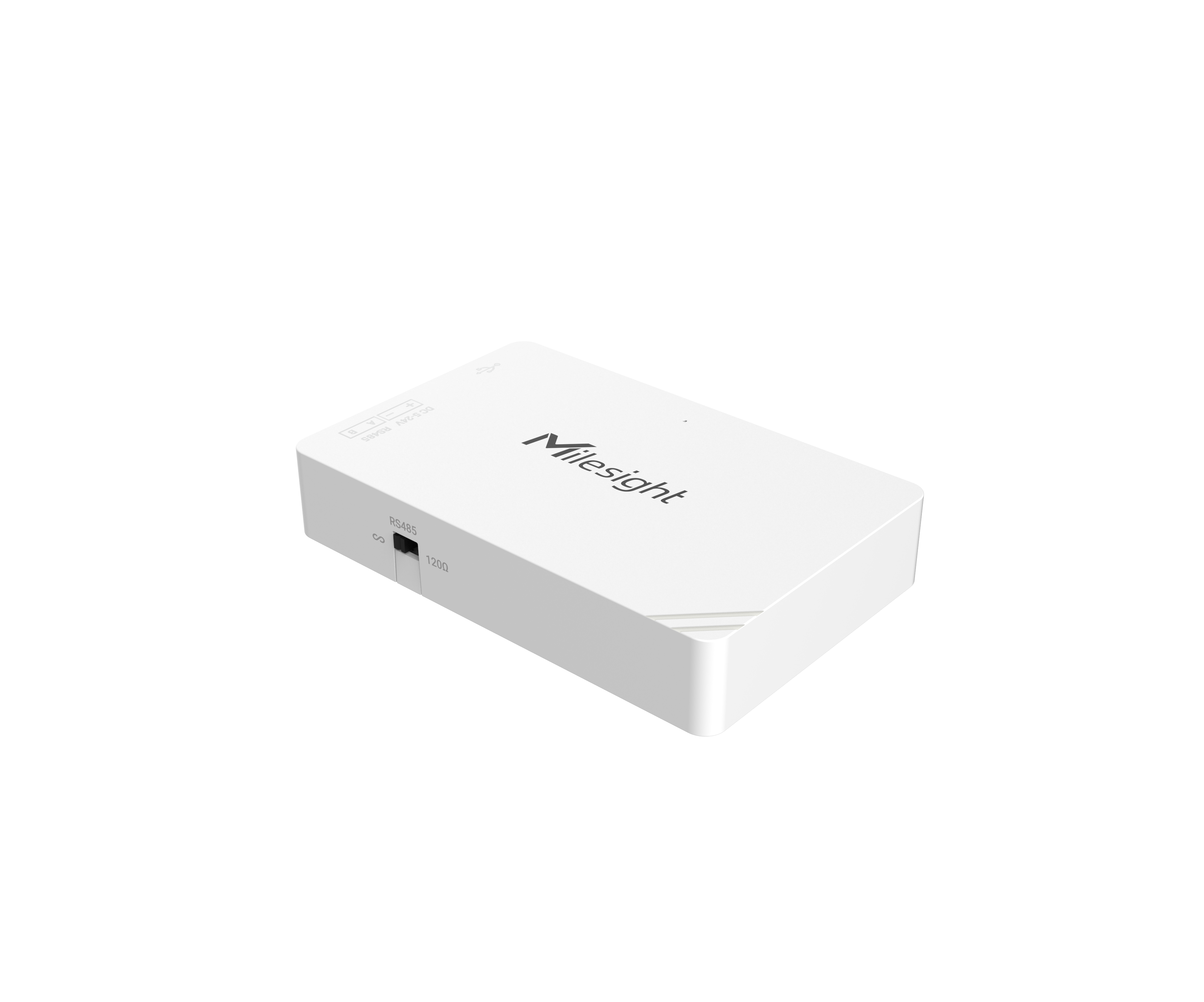

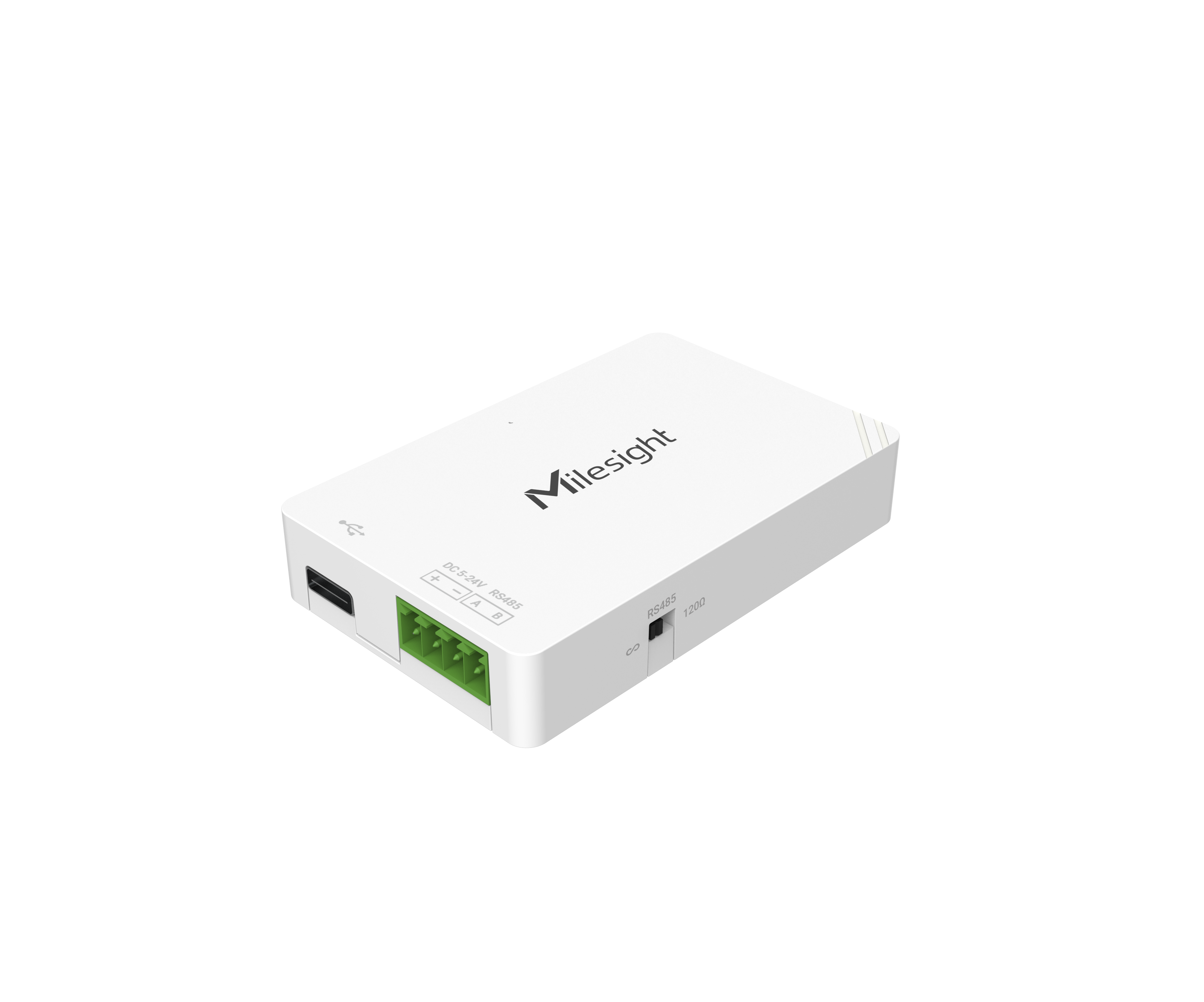

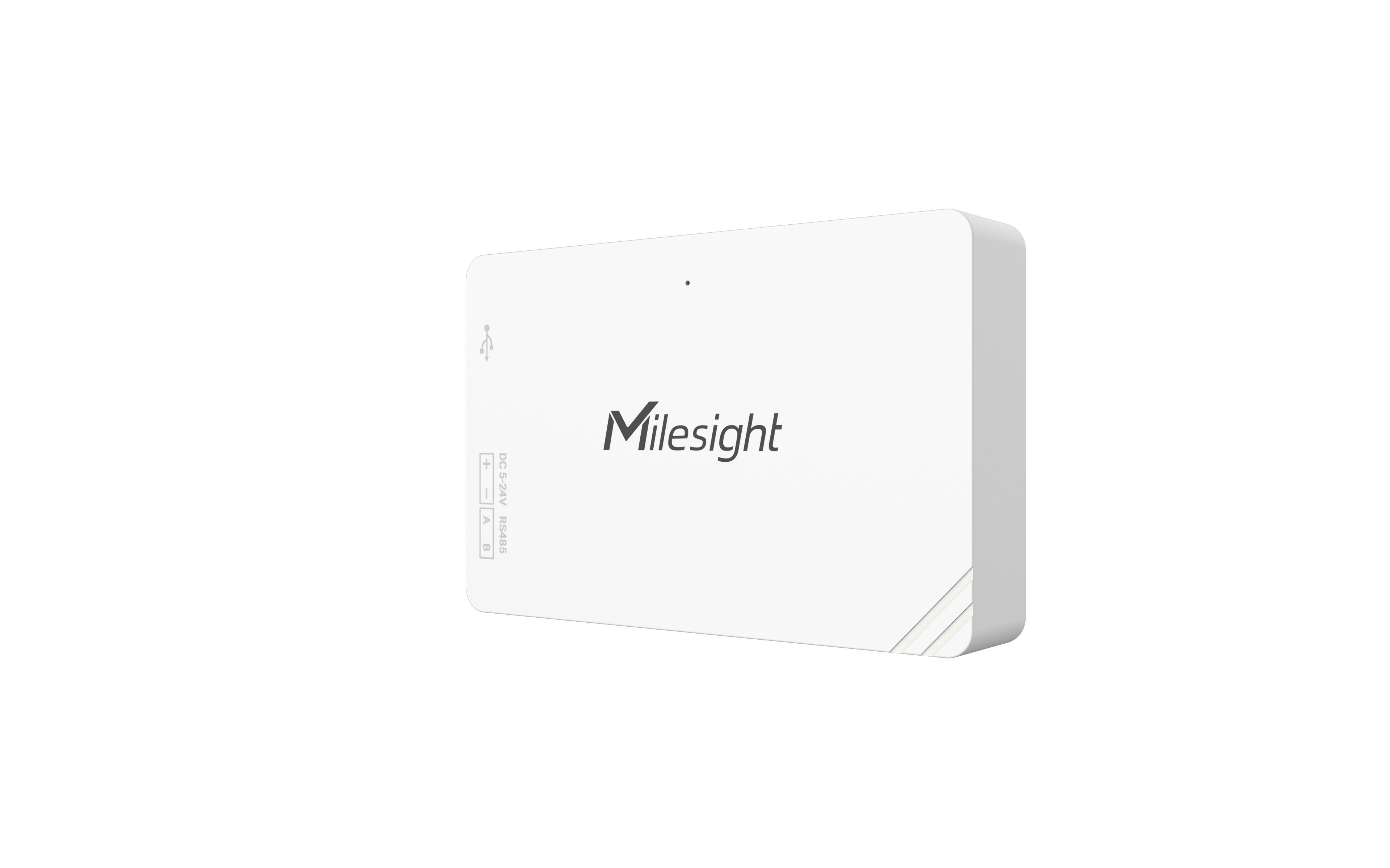

MODBUS to LORAWAN Controller

₹13200.00₹9300.00

Wireless Transmission

Technology

LoRaWAN®, Milesight D2D

Antenna

Internal Antenna

Frequency

CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4

Tx Power

16dBm (868 MHz)/22dBm (915 MHz)/19dBm (470 MHz)

Sensitivity

-137dBm @300bps

Mode

OTAA/ABP Class C

Advanced Feature

Milesight D2D Controller, Milesight D2D Agent

Data Interface

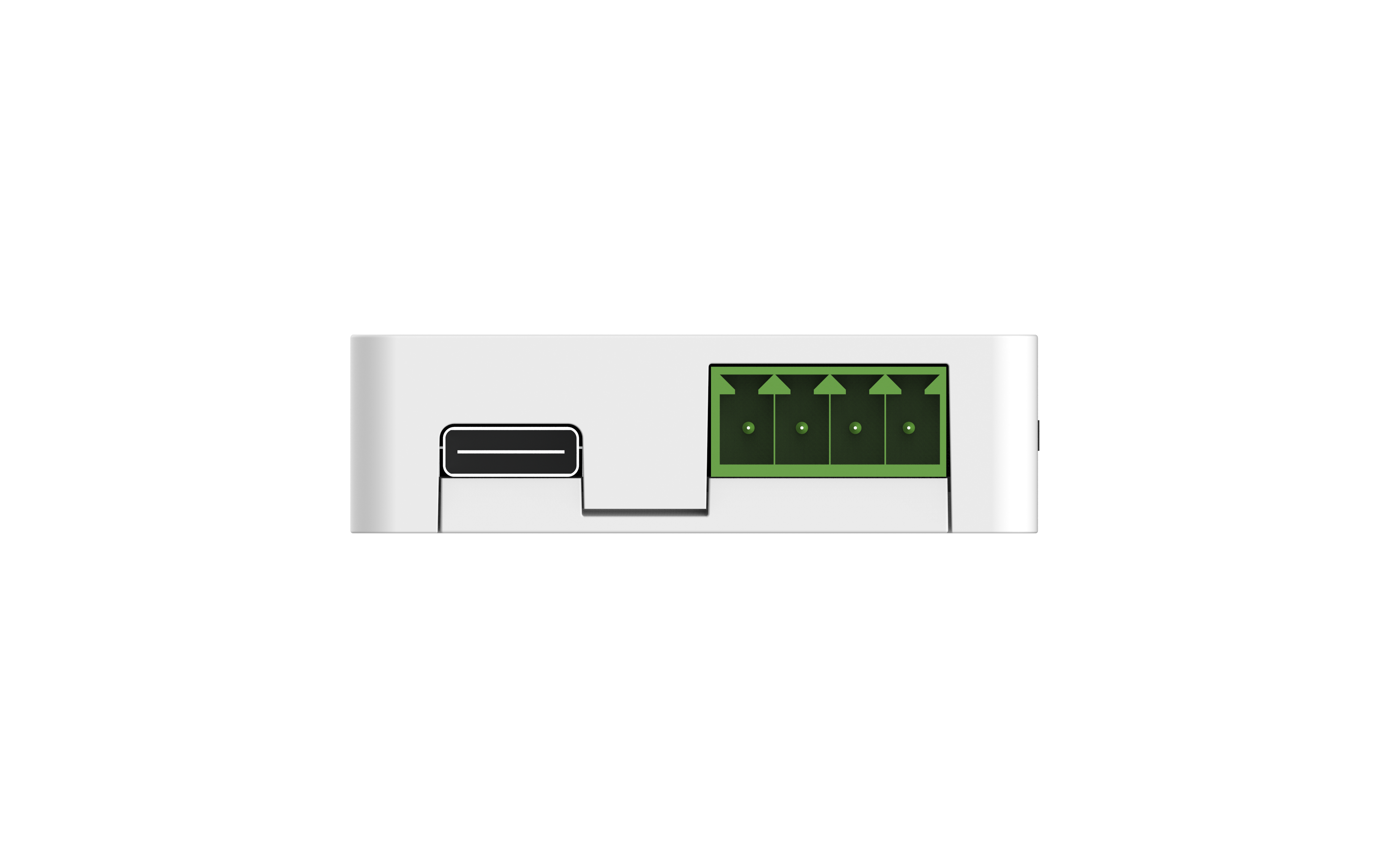

Port

1 × RS485

Connector

3.5 mm Terminal Block

Terminal Resistor

1 × 120 Ω Resister Switch

Baud Rate

1200~115200 bps

Protocol

Modbus RTU, support reading 16 register values

Others

Configuration Port

1 × Type-C

Reset Button

1 × Reset Button (Internal)

LED Indicator

1 × System

Physical Characteristics

Power Connector

3.5 mm Terminal Block

Power Supply

1. 5-24 VDC by Terminal Block
2. 5 VDC by Type-C Port

Power Consumption

< 0.5 W

Material & Color

PC+ABS, White

Ingress Protection

IP30

Operating Temperature

-20°C ~ 60°C (-4℉ to +140℉)

Relative Humidity

0% ~ 95% (non-condensing)

Dimensions

70 × 45 × 13 mm (2.75 × 1.77 × 0.51 in)

Installation

Desktop, Wall Mounting
